Xpon Router: 1G XPON ONU

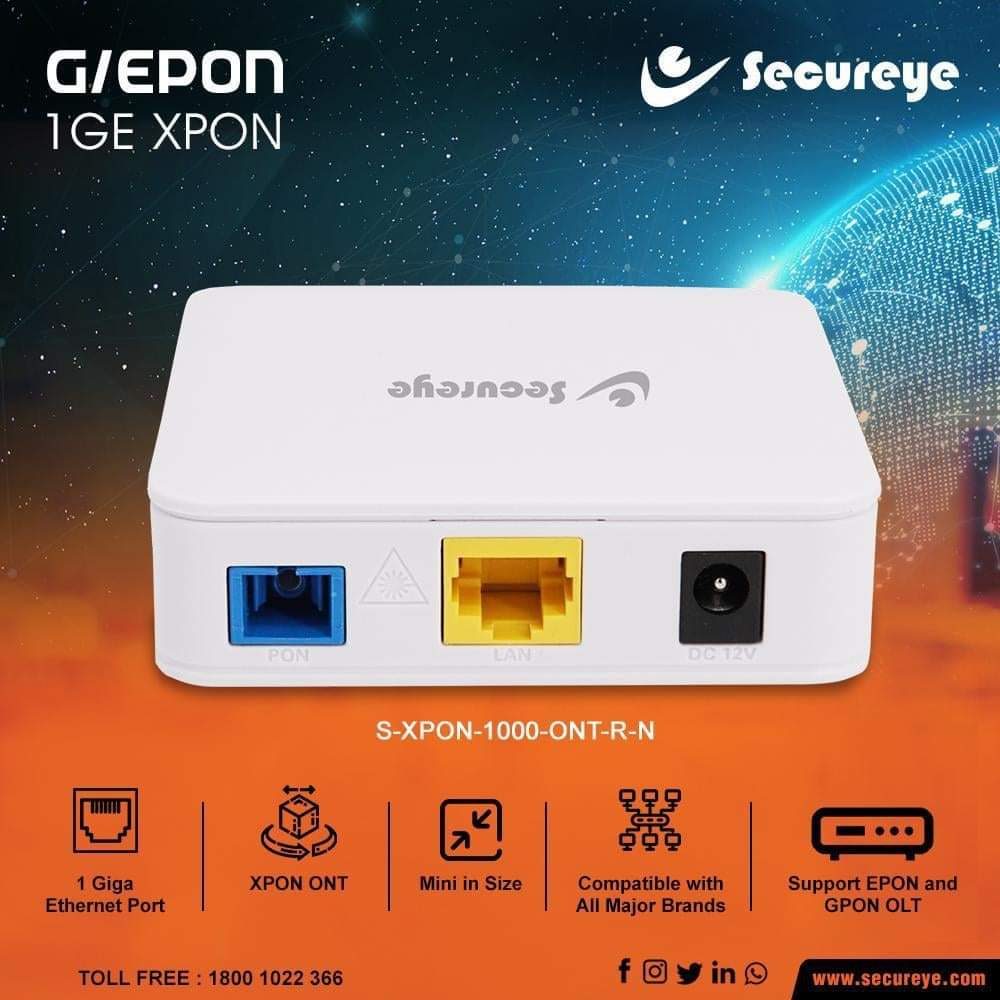

Xpon Router: 1G XPON ONU Description : 1G Xpon ONU Router - Dual mode Epon and Gpon Model No : S-XPON-1000-ONT-R-N Key Features: Dual Mode( can access gpon/ epon olts ). Compatible with popular OLTs Industrial Design Routing or Bridging Mode Detecting Rogue ONU Flow & Storm Control , Loop Detectio…

Enquire about this Call us

Description

PON interface:

1 G/EPON port(EPON PX20+ and GPON Class B+)

Wavelength: Tx1310nm,Rx 1490nm SC/UPC connector
Receiving saturation: ≥ 2-8dBm
Receiving sensitivity: ≤ -28dBm
Transmitting optical power: 0-+4dBm
Transmission distance: 20KM

LAN Interface

1 x 10/100/1000Mbps auto adaptive Ethernet
interfaces.10/100/1000M Full/Half, RJ45 connector
LED 3, For Status of REG, SYS, LINK/ACT

Operating Condition:

Temperature: -30°C – +70°C
Humidity: 10% – 90% ( non-condensing )

Storing Condition

Temperature: -30°C – +70°C
Humidity: 10% – 90% ( non-condensing )
Power Supply: DC 12V/0.5A
Dimension: 82mmx82mmx25mm ( LxWxH )
Net weight: 85g

Software Parameters: Basic

Support MPCP discover®ister
Support authentication Mac/Loid/Mac+Loid
Basic Support Triple Churning
Support DBA bandwidth
Support auto-detecting, auto-configuration, and auto
firmware upgrade
Support authentication SN/Psw/Loid/Loid+Psw

Alarm

Support Dying Gasp
Support Port Loop Detect
Support Eth Port Los

LAN

Support Port rate limiting
Support Loop detection
Support Flow control
Support Storm control

VLAN:

Support VLAN tag mode
Support VLAN transparent mode
Support VLAN trunk mode(max 8 vlans)
Support VLAN 1:1 translation mode(max 8 vlans

Multicast

Support IGMPv1/v2
Support IGMP Snooping
Max Multicast vlan 8
Max Multicast Group 64

QoS

Support 4 queues
Support SP and WRR
Support 802.1 P

L3

Support Ipv4
Support DHCP/PPPOE/Static IP
Support Static route
Support NAT

Management

Support CTC OAM 2.0 and 2.1
Support ITUT984.x OMCI
Support WEB
Support TELNET
Support CLI

Throughput

Upstream >900Mbps
Downstream >960Mbps

Paquet period

14Hours /Lost 0
