TP GPON OLT_DS-P7001-04
Download for DS-P7001-04 V1 DPMS User Guide TP-Link GPON OLT User Guide DS-P7001-04(UN)_V1_CLI Guide Firmware A firmware update can resolve issues that the previous firmware version may have and improve its current performance. To Upgrade IMPORTANT: To prevent upgrade failures, please read the f…
Description
DS-P7001-04

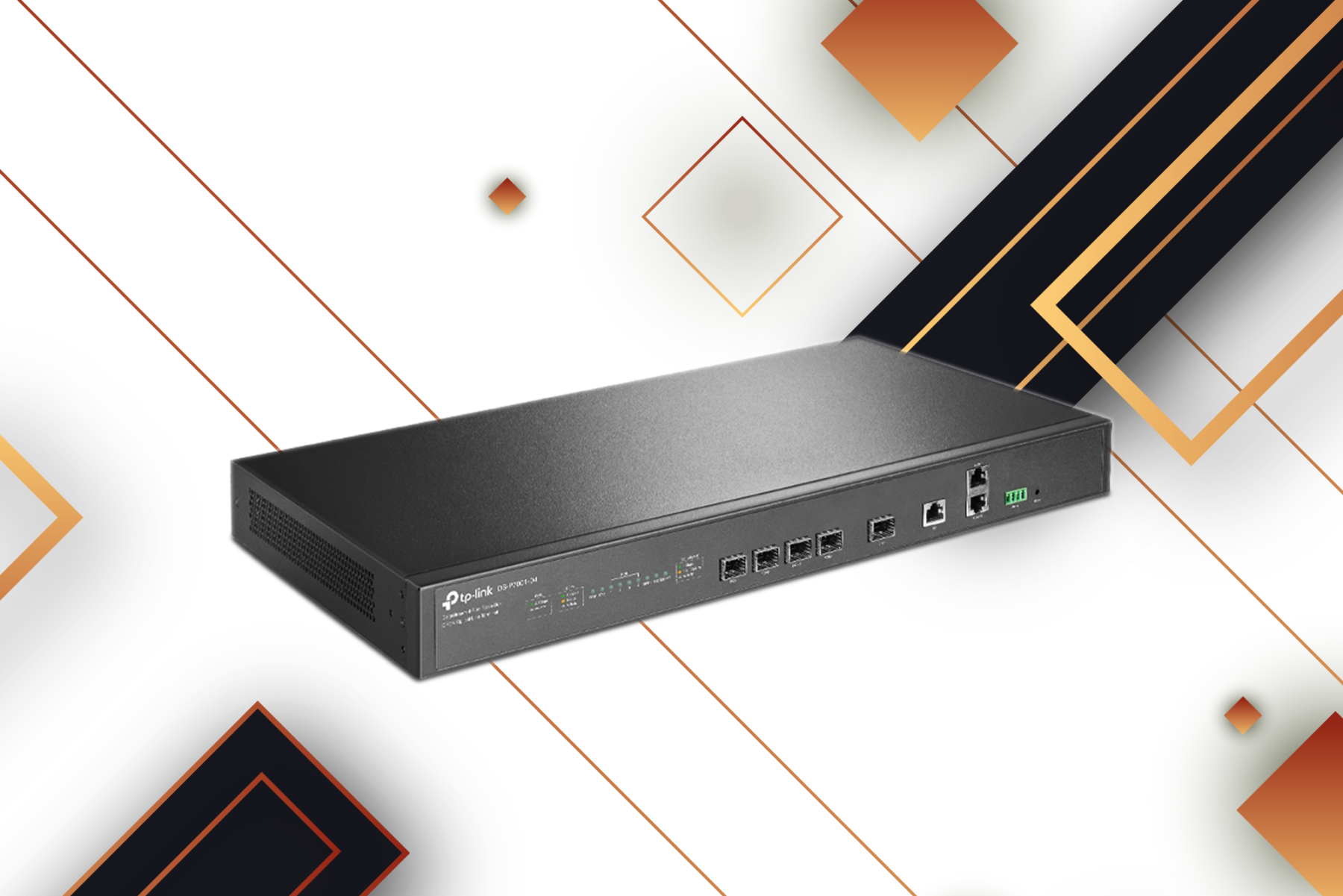

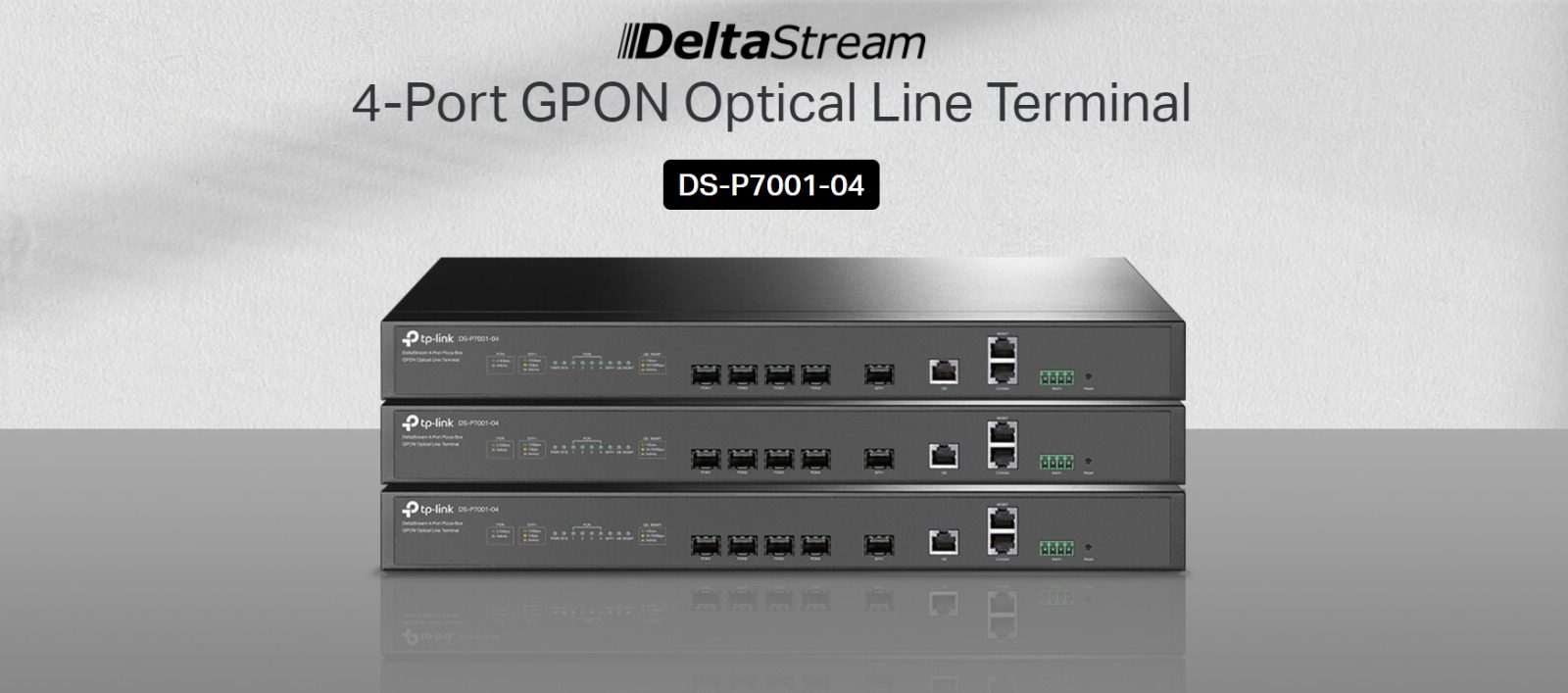

Delta Stream 4-port Pizza-box GPON Optical Line Terminal

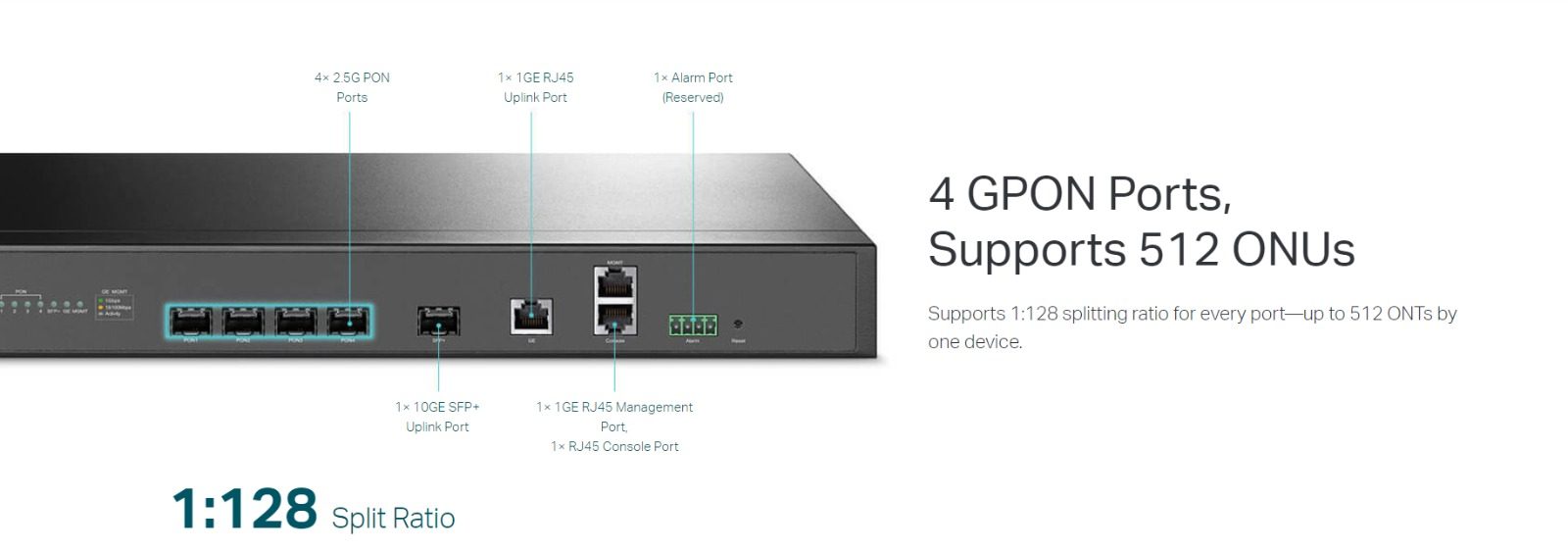

- 4 GPON Ports: Supports 1:128 splitting ratio for every port—up to 512 ONTs by one device.
- High-Speed Uplink Ports: Provides 1× 10GE SFP+ port and 1× gigabit uplink port.
- Redundant Dual Power Supplies: Carrier-class reliability with dual built-in AC+DC power supplies.
- Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
- Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
- Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.
Specification
- Interface
- • 4× 2.5G PON Ports • 1× 10 Gbps SFP+ Uplink Port • 1× 10/100/1000 Mbps RJ45 Uplink Port • 1× RJ45 Console Port • 1× RJ45 MGMT Port • 1× Alarm Port (Reserved)
- Button
- Reset Button
- Power Supply
- Dual Power Supplies • AC: 100V~240V, 50/60Hz • DC: -38.4V~-72V
- Power Consumption
- Max. 58W
- Dimensions ( W x D x H )
- 17.3 × 7.1 × 1.7 in (440 × 180× 44 mm)
