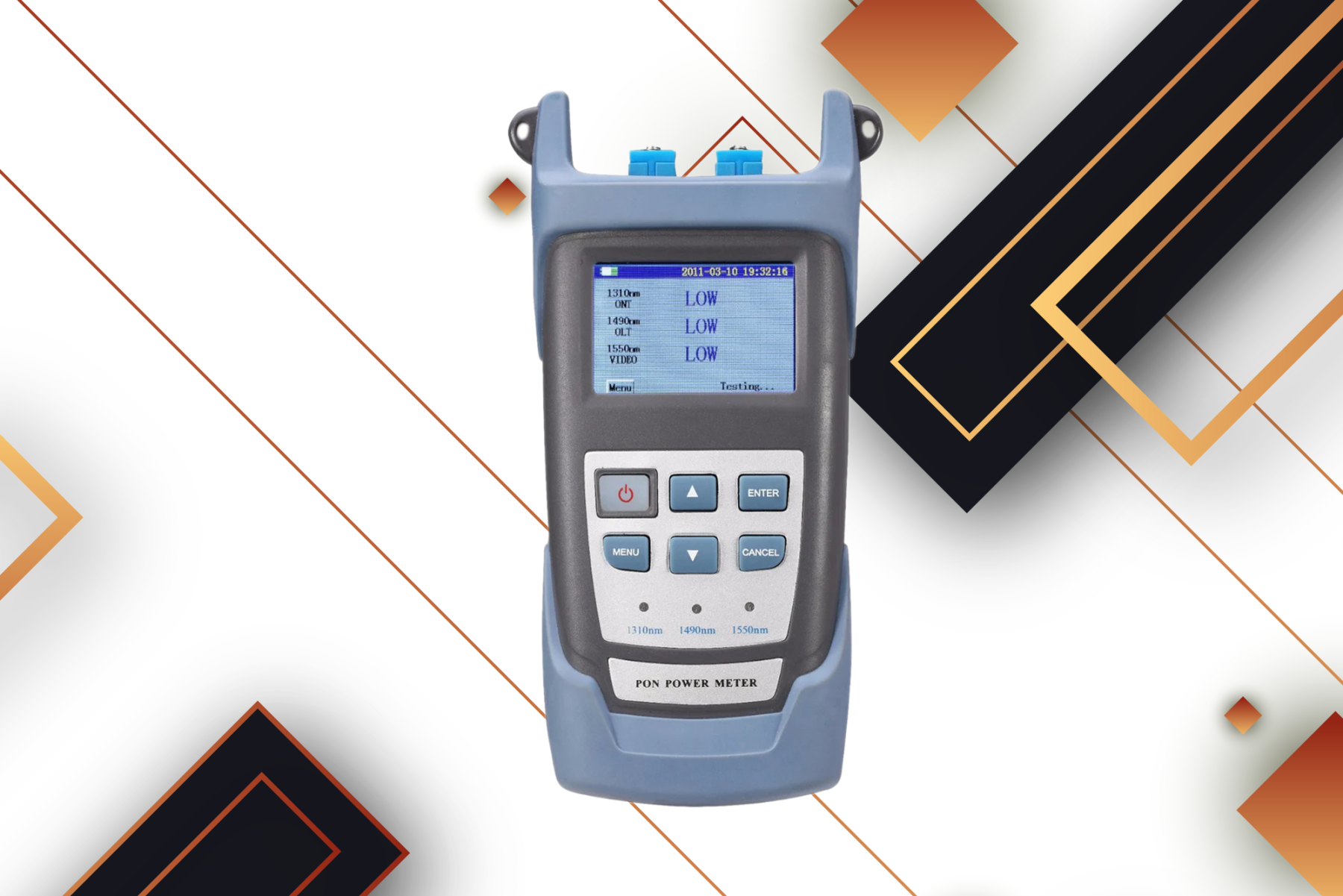

PON POWER METER

SUMMARY

• Easy Carrying: Comes with small size and lightweight, you can easily take this meter with you to help with your work.
• Main Application: This PON power meter testing wavelength, 1310, 1490, 1550nm, and this meter can test three wavelengths at the same time.
• Functions Available: This power meter supports data storage, automatic shutdown, automatic calibration, user calibration and threshold setting.
• Interface Details: This power meter supports FC, SC interface adapters(include). With USB interface, this power meter can be connected to external power supply.
• Color LCD: With a color LCD screen that supports backlit function, you can easily monitor the testing data and make records.

Product description

Feature:
1. Main Application: This PON power meter testing wavelength, 1310, 1490, 1550nm, and this meter can test three wavelengths at the same time.
2. Functions Available: This power meter supports data storage, automatic shutdown, automatic calibration, user calibration and threshold setting.
3. Interface Details: This power meter supports FC, SC interface adapters(include). With USB interface, this power meter can be connected to external power supply.
4. Color LCD: With a color LCD screen that supports backlit function, you can easily monitor the testing data and make records.
5. Easy Carrying: Comes with small size and lightweight, you can easily take this meter with you to help with your work.

Specification:
Item Type: PON Power Meter
Material: ABS
Display: Color LCD
Detector Type: InGaAs
Fiber Type: SM9, 125 μ m
Data Storage: 10 Set
Data Interface: Micro USB
Power Supply Mode: 9V Dry Battery is Required (Delivery Without Battery)
Three Wavelengths Can be Tested Simultaneously: 1310nm, 1490nm, 1550nm
Optical Connector: FC, UPC (Interchangeable SC, ST)

Package List:
1 x Power Meter
1 x Storage Bag
1 x Lanyard
1 x Manual
2 x SC Adapter
2 x FC Adapter(Installed on the power meter)
2 x Ceramic Core
