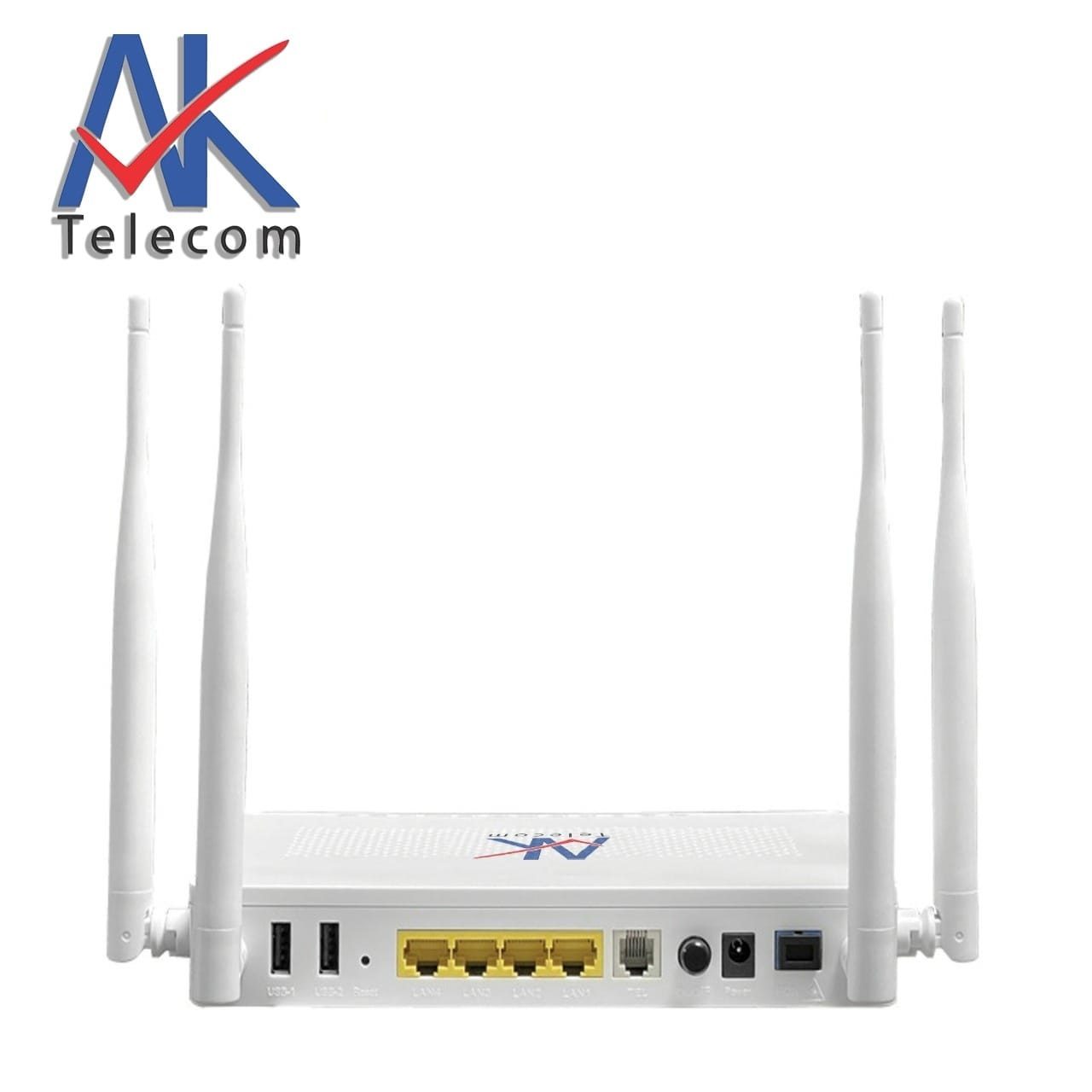

DUAL BAND
Application Typical Solution: FTTH(Fiber To The Home) Typical Business: INTERNET, IPTV, WIFI etc.
Description
1. Overview
- XP8421-B is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access.
- XP8421-B is based on mature and stable, cost-effective GPON technology. It could switch automatically into GPON mode when access to the GPON
- XP8421-B adopts high reliability, easy management, configuration flexibility, and good quality of service guarantees to meet the technical performance of GPON Standard of ITU-TG.984.X and IEEE802.3ah.
2. Functional Feature
-
- Support GPON mode and EPON mode.
- Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
- Support IPv4 and IPv6 Dual mode
- Support 2.4G&5.8G WIFI and Multiple SSID
- Support LAN IP and DHCP Server configuration
- Support Port Mapping and Loop-Detect
- Support Firewall function and ACL function
- Support IGMP Snooping/Proxy multicast feature
- Support TR069 remote configuration and maintenance
- Specialized design for system breakdown prevention to maintain stable system
4. Hardware Specification
Specification
- PON Interface
- 1 GPON BoB (Class B+）
- Wavelength
- TX: 1310nm, RX: 1490nm
- Optical Interface
- SC/UPC Connector
- Design Scheme
- ECONET7526
- Chip Spec
- CPU 950MHz,DDR2 256MB
- Flash
- SPI NAND Flash 128MB
- LAN Interface
- 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
- Wireless
- Compliant with IEEE802.11b/g/n, ac
- POTS interface
- 1 FXS, RJ11connector Support: G.711/G.723/G.726/G.729codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according toGR-909
- LED
- 12 LED, For Status of PWR, LOS, PON, LAN1~LAN4, 2.4G, 5.8G, TEL, wps, internet
- Push-Button
- 2 ,For Function of Reset and WPS
- Operating Condition
- Temperature: 0℃~+50℃
- Storing Condition
- Temperature: -30℃~+60℃
- Power Supply
- DC 12V/1.5A
- Power Consumption
- ≤8W
- Dimension
- 208mm×133mm×42mm（L×W×H）
- Net Weight
- 0.35Kg
