Description
SUMMARY
- Easy Carrying: Comes with small size and lightweight, you can easily take this meter with you to help with your work.
- Main Application: This PON power meter testing wavelength, 1310, 1490, 1550nm, and this meter can test three wavelengths at the same time.
- Functions Available: This power meter supports data storage, automatic shutdown, automatic calibration, user calibration and threshold setting.
- Interface Details: This power meter supports FC, SC interface adapters(include). With USB interface, this power meter can be connected to external power supply.
- Color LCD: With a color LCD screen that supports backlit function, you can easily monitor the testing data and make records.
TECHNICAL SPECIFICATION
| Connector Type |
Micro USB |
| Cable Type |
USB |
| Compatible Device |
Monitor |
| Connector Gender |
Male-to-Male |
| Net Quantity |
1.0 count |
| Connectivity Technology |
USB |
| Model Name |
Rengun0h21gcvmg |
| Number of Memory Sticks |
1 |
| Manufacturer |
China |
| Model number |
Rengun0h21gcvmg |
| Package Dimensions |
22 x 13 x 6 cm |
Product description
Feature:
1. Main Application: This PON power meter testing wavelength, 1310, 1490, 1550nm, and this meter can test three wavelengths at the same time.
2. Functions Available: This power meter supports data storage, automatic shutdown, automatic calibration, user calibration and threshold setting.
3. Interface Details: This power meter supports FC, SC interface adapters(include). With USB interface, this power meter can be connected to external power supply.
4. Color LCD: With a color LCD screen that supports backlit function, you can easily monitor the testing data and make records.
5. Easy Carrying: Comes with small size and lightweight, you can easily take this meter with you to help with your work.
Specification:

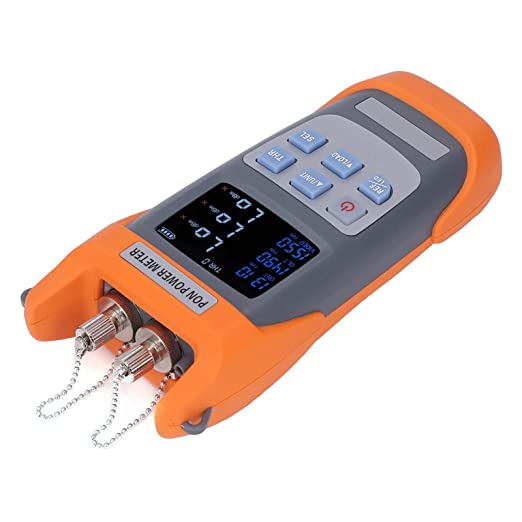

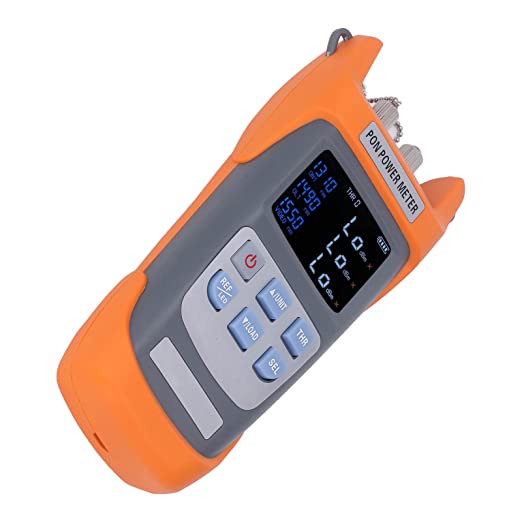

Item Type: PON Power Meter
Material: ABS
Display: Color LCD
Detector Type: InGaAs
Fiber Type: SM9, 125 μ m
Data Storage: 10 Set
Data Interface: Micro USB
Power Supply Mode: 9V Dry Battery is Required (Delivery Without Battery)
Three Wavelengths Can be Tested Simultaneously: 1310nm, 1490nm, 1550nm
Optical Connector: FC, UPC (Interchangeable SC, ST)

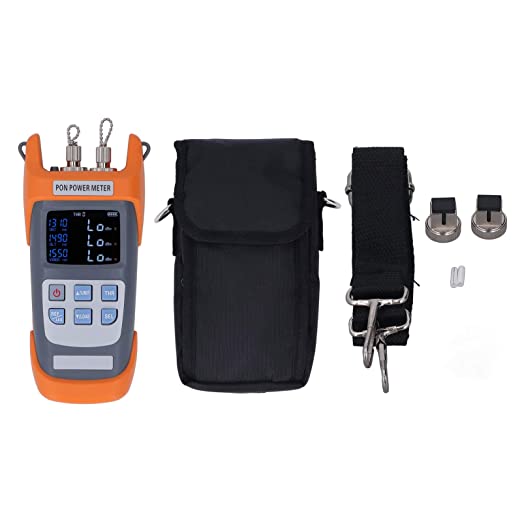

Package List:
1 x Power Meter
1 x Storage Bag
1 x Lanyard
1 x Manual
2 x SC Adapter
2 x FC Adapter(Installed on the power meter)
2 x Ceramic Core
