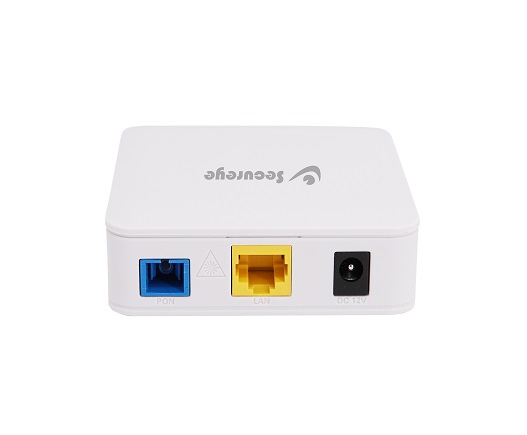

1GE EPON ONU Router – S-EPON-1000-ONU-3

Description

Product Overview:

1GE EPON ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a EPON Gigabit Ethernet products. It can also be applied to a wide temperature environment, and also has a powerful firewall function. The box is based on the mature Gigabit EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

PON interface

• 1 EPON port: (PX20+)
• Wavelength:Tx1310nm,Rx 1490nm
• SC/UPC connector
• Receiving saturation: ≥-8dBm
• Receiving sensitivity: ≤-28dBm
• Transmitting optical power: 0~+4dBm
• Transmission distance: 20KM

LAN interface

• 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector
• LED:  3, For Status of REG、SYS、LINK/ACT



Operating condition

• Temperature: -30℃～+70℃
• Humidity: 10%～90%（non-condensing）

Storing condition

• Temperature: -30℃～+70℃
• Humidity:10%～90%（non-condensing）
• Power supply: DC 12V/0.5A
• Power consumption: ≤4W
• Dimension: 82mm×82mm×25mm（L×W×H）
• Net weight: 85g

Basic

• Support MPCP discover & register
• Support authentication Mac/Loid/Mac + Loid
• Support Triple Churning
• Support DBA bandwidth
• Support auto-detecting, auto-configuration, and auto firmware upgrade
• Support authentication SN/Psw/Loid/Loid+Psw

Alarm

• Support Dying Gasp
• Support Port Loop Detect
• Support Eth Port Los

LAN

• Support Port rate limiting
• Support Loop detection
• Support Flow control
• Support Storm control

VLAN

• Support VLAN tag mode
• Support VLAN transparent mode
• Support VLAN trunk mode(max 8 vlans)
• Support VLAN 1:1 translation mode(max 8 vlans)
• Auto VLAN detection



Multicast

• Support IGMPv1/v2
• Support IGMP Snooping
• Max Multicast vlan 8
• Max Multicast Group 64

QoS

• Support 4 queues
• Support SP and WRR
• Support 802.1P

L3

• Support IPv4
• Support DHCP/PPPOE/Static IP
• Support Static route
• Support NAT

Management:

•  Support CTC OAM 2.0 and 2.1
• Support ITUT984.x OMCI
• Support WEB
• Support TELNET
• Support CLI

Throughput

• Upstream >900Mbps
• Downstream >960Mbp
• Paquet Perdio : 14 Hours/ Lost 0
